Ultra-High Bond Tape
4600 Series
The 4600 Series Ultra-High Bond tapes are designed to provide superior heat resistance, conformability, and material bonding for use in side moldings, appliances, HVAC, and general industrial and construction applications.
Ultra-High Bond Tape
4600 Series Ultra-High Bond Solid Acrylic Core Tape
The 4600 Series features acrylic foam double-sided tapes with self-adhesive layers, designed for reliable bonding and performance at short-term high temperatures. These tapes deliver high shear with excellent resistance to solvents and temperature cycling, along with superior shock absorption and vibration damping properties. Their flexibility and softness allow for easy application to curved surfaces and contours. Available in gray.
-
Ideal for side moldings, metal stiffeners, appliances, HVAC, general industrial and construction applications
-
Fast, permanent bonding provides instant strength without curing or fixturing.
-
Thin, seamless tape design (45 mil /1.1 mm) replaces rivets, screws, welds, and liquid adhesives
-
Offers strong shear resistance, flexibility, and reliable adhesion on high- and medium-surface-energy metals and plastics
-
Closed-cell foam resists moisture, vibration, fatigue, and harsh environments
-
Extreme temperature resistance against continuous temperatures (up to 250°F/121°C) and short-term extreme heat (up to 450°F/230°C for up to 4 hours)
-
Versatile & lightweight for bonding dissimilar materials

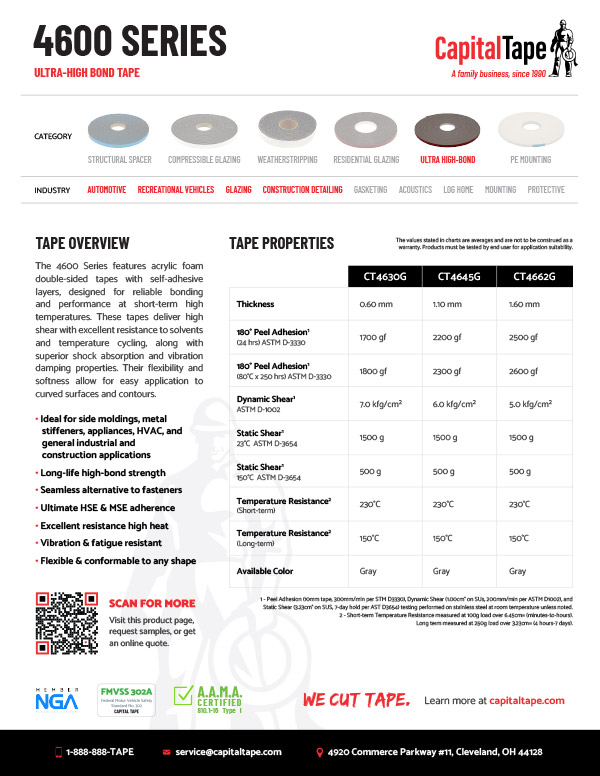

Download the 4600 Series Solid Acrylic Foam data sheet (PDF)
Looking for a specific 4600 series tape data sheet?
Find it here for download
|
|
CT4630G |
CT4645G |
CT4662G |
|
Thickness |
0.60 mm |
1.10 mm |
1.60 mm |
|
180° Peel Adhesion1 |
1700 gf |
2200 gf |
2500 gf |
|
180° Peel Adhesion1 |
1800 gf |
2300 gf |
2600 gf |
|
Dynamic Shear1 |
7.0 kfg/cm² |
6.0 kfg/cm² |
5.0 kfg/cm² |
|
Static Shear1 |
1500 g |
1500 g |
1500 g |
|
Static Shear1 |
500 g |
500 g |
500 g |
|
Temperature Resistance2 |
230°C |
230°C |
230°C |
|
Temperature Resistance2 |
150°C |
150°C | 150°C |
|
Available Color |
Gray |
Gray |
Gray |
1 – Peel Adhesion (10mm tape, 300mm/min per STM D3330), Dynamic Shear (1.00cm° on SUs, 200mm/min per ASTM D1002), and Static Shear (3.23cm° on SUS, 7-day hold per AST D3654) testing performed on stainless steel at room temperature unless noted.
2 – Short-term Temperature Resistance measured at 100g load over 6.45cm= (minutes-to-hours). Long term measured at 250g load over 3.23cm= (4 hours-7 days).
These are approximate values and do not constitute warranty that products are fit for a particular purpose. The customer is advised to fully determine the suitability of these products for his intended use. These products conform to published specifications, if any, and the products are merchantable. Test data contained herein is believed to be reliable but unless specifically stated are not to be taken as specifications for products.
Get a Fast 4600 Series Tape Online Quote
4600 Series Ultra-High Bond Tape
(Size/color minimums may apply)
