Compressible Glazing Tape
V1510
The V1510 Compressible Glazing Tape from Capital Tape is an aggressive, pressure-sensitive adhesive on one side of a medium density, closed cell foam.
Capital Tape’s V1510 Foam Tape is A.A.M.A. Certified 810.1-16 Type 1
Capital Tape Compressible Glazing Tape
Closed-Cell PVC Foam Glazing Tape
V1510 Medium Density PVC Foam Tape
Ideal for storefront and architectural glazing, these tapes provide an excellent combination of flexibility and conformability with strength and wear resistance. Performs in tough applications where a tape must still flex to fit and seal. Excellent dimensional stability and a cushion against heavier loads. This foams density allows for clean die cuts and fastener penetration.
- Excellent dimensional stability and a cushion against heavier loads.
- Allows for clean die cuts and fastener penetration.
- Withstands wear and abrasion.
- Excellent resistance to fungi, weather, and oxidation.
- Fire rating: Meets or exceeds FMVSS 302A. Self-Extinguishing/No Burn Rate

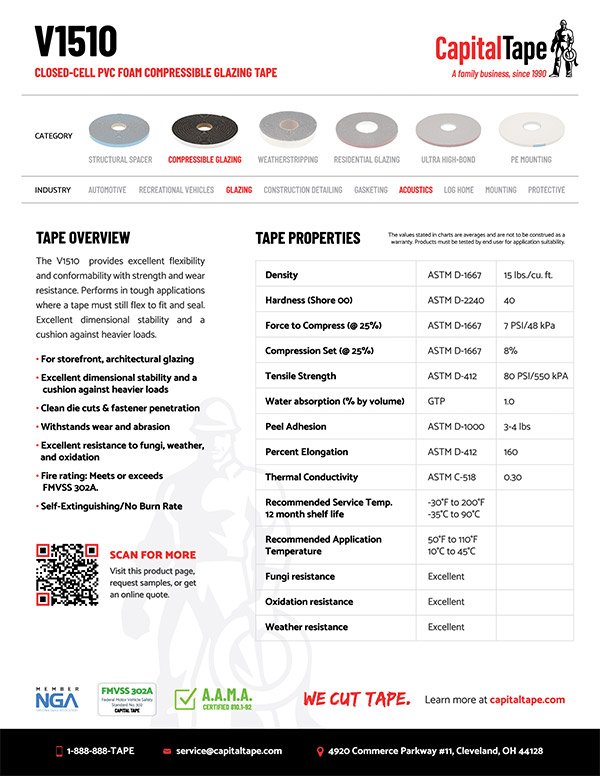

Download the V1510 Medium Density PVC Foam Tape data sheet (PDF)
| DENSITY | ASTM D-1667 | 15 lbs./cu. ft. |
| HARDNESS (Shore 00) | ASTM D-2240 | 40 |
| Force to Compress (@ 25%) | ASTM D-1667 | 7 psi 48 kPa |
| Compression Set 25% (% loss from original height) | ASTM D-1667 | 8% |
| Peel Adhesion | ASTM D-1000 | 3-4 lbs. |
| Water absorption (% by volume) | GTP | 1.0 |
| Tensile Strength | ASTM D-412 | 80 psi 550 kPa |
| Percent Elongation | ASTM D-412 | 160 |
| Thermal Conductivity (K factor) (btu-in.)/(hr.,sq.ft.)(F°) w.mK | ASTM C-518 | 0.30 |
| Recommended Service Temperature
12 month shelf life |
-30°F to 200°F
-35°C to 90°C |
|
| Recommended Application Temperature | 50°F to 110°F 10°C to 45°C |
|
| Fungi resistance |
Excellent | |
| Oxidation resistance | Excellent | |
| Weather resistance | Excellent |
The values stated in charts are averages and are not to be construed as a warranty. Products must be tested by the end user for suitability in their applications.
Get a Fast V1510 Online Quote
V1510 Compressible Glazing Tape
(Size/color minimums may apply)
