Low-Density & Weatherstripping Tape
CT610 Tape
The CT610 is a low density PVC foam tape with pressure-sensitive adhesive on one side, ideal for sealing plastics and thin gauge metals.
Closed-Cell PVC Foam Tape
CT610 Tape: Light Density PVC Foam Tape
The CT610 tape is a closed-cell, low-density PVC foam tape manufactured for use in applications requiring dust, light, and water-tight seals, from electronics, weatherstripping, and recreational vehicles.
- 30% compression, single side adhesive
- Low force compression, positive seal
- Flame resistant under FMVSS 302
- Cold resistant, will not crack
- High flexibility for sealing corners & curves
- Excellent resistance to weather, fungi, and oxidation
- Seals out light, water, and dust, ideal for mechanical and electronic assemblies
- Excellent for curtain wall, retail wall systems
- Long seal life
- Ideal applications: Recreational/off-road vehicles, busses, retail weatherstripping and curtain wall, pneumatic seal, refrigeration, HVAC and electronic cabinet sealing, concrete walls (precast), telecommunications, environmentally-controlled rooms

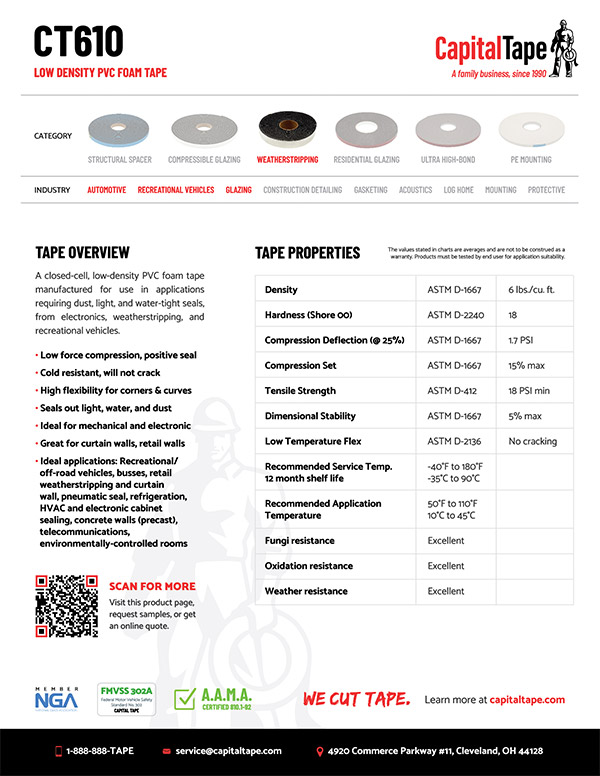

Download the Light Density PVC Foam CT610 Tape data sheet (PDF)
| DENSITY | ASTM D-1667 | 6 lbs./cu. ft. |
| HARDNESS (Shore 00) | ASTM D-2240 | 18 |
| Compression Deflection (@ 50%) | GM 6086 | 1.7 psi |
| Compression Set (@ 25%) | ASTM D-1667 | 15% max |
| Tensile Strength | ASTM D-412 | 18 psi, min |
| Dimensional Stability |
ASTM D-1667 |
5% max |
| Low Temperature Flex |
ASTM D-2136 |
No cracking |
|
Recommended Service Temperature 12 month shelf life |
-40°F to 180°F -35°C to 90°C |
|
| Recommended Application Temperature | 50°F to 110°F 10°C to 45°C |
|
| Fungi resistance |
Excellent | |
| Oxidation resistance | Excellent | |
| Weather resistance | Excellent |
The values stated in charts are averages and are not to be construed as a warranty. Products must be tested by the end user for suitability in their applications.
Get a Fast Online Quote
CT610 Tape | Low-Density & Weatherstripping Tape
(Size/color minimums may apply)
